This is a collection of additional fonts for the VARKON® parametric CAD system. The files here are for the most part just the VARKON-ready *.FNT files. For information on how these font files were created, see the other sections of this "Additional Fonts for VARKON" document.
To use one of these fonts, copy the font file into your $VARKON_ROOT/cnf/fnt directory and rename it to some unused number; e.g., "10.FNT". Then, in your MBS text statements, use the "tfont" attribute to specify this font; e.g.:
text(#1,vec(0,0),0,"FUBAR": tfont=10);
All of the font file names here are prefixed with the string "com-lemur-". Why a prefix string? These arrangements of the Hershey Glyphs into fonts are not the only possible arrangements. For example, my decision not to encode uppercase glyphs in the lowercase ASCII positions in the "cartographic lineface" fonts differs from the Holzmann USENET distribution mapping files. My mapping of the "extra" Greek characters to J,j,V, and v is arbitrary. My use of glyphs from a duplex range to fill in ASCII punctuation in a uniplex font is questionable (and if I was willing to do that, why didn't I include uppercase in the lowercase positions of the "cartographic" fonts? I'm not sure I have a good answer). The Greek mapping differs from Unicode. There are any number of reasons why someone might wish to take this same glyph data and arrange it differently into fonts. Prefixing the font names allows others who map these fonts differently to use different prefixes to lessen the problems of duplicate filenames. Why "com-lemur-"? Well, lemur.comtm is our Internet domain. This prefixing convention is similar (but not identical) to that used by the Java® programming language to provide a universal namespace based on reversed Internet domain names. We're also quite fond of lemurs and concerned for their survival. If you share these interests, you may wish to contact The Duke University Primate Center to support their efforts.
If you modify these fonts, as is your right under the Holzmann USENET distribution terms and the GNU Free Documentation License, please change the "com-lemur-" prefix to reflect your own Internet domain, or your own naming convention, as appropriate.
The VARKON font format does not include room for version identification, yet it is likely that these fonts will change. Each font map file here is given a version, starting with 0. For each font (.FNT) file, an md5sum cryptographic checksum is given. I use this particular checksum not for any reasons of cryptography or security, but simply because it is a convenient checksum available on all modern computer systems.
Please note that the font files derived from the Hershey data, while freely usable and redistributable, still contain the Hershey data and are subject to the same simple conditions imposed on the original Holzmann USENET distribution of these data. For further information on this, please see the Holzmann USENET Hershey Glyph Distribution Cover Statement.
| Font Map Font File Version / Font File md5sum |
Picture | Description |
|

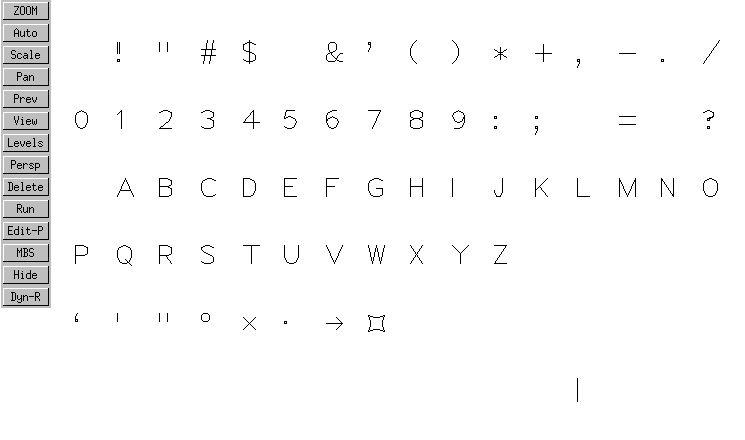

com-lemur-vk-hershey-cartographic-uniplex-taper0-lineface-latin
com-lemur-vk-hershey-cartographic-uniplex-taper0-lineface-latin.FNT 0 / b94ccf23824d35c209a708a76bc7db87 |

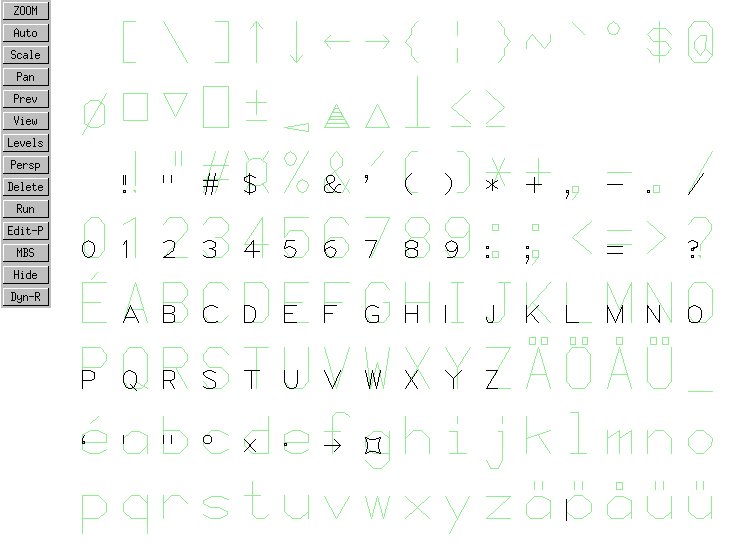

Separate
Over Varkon Font 0 |
Hershey, cartographic uniplex taper 0 lineface: Latin uppercase letters, Arabic numerals, and symbols |
Here's a GNU® zipped, GNU tarred "tarball" of this section: affv-fonts-0.0.tar.gz
